FC400-2500 Series

FC400 Operating Specifications

• Operating fluid pressure range (LP): 0 to 172 kPa ( 0 to 30 psig) @ 80°C (176°F)
• Operating fluid pressure range (HP – 10″ only): 0 to 516 kPa ( 0 to 45 psig) @ 80°C (176°F)
• Operating fluid temperature range: 1 to 80°C (33 to 176°F)
• Maximum Pressure differential on tubing: 35 kPa (0 to 5 psid) @ 80°C (176°F)
• Negative pressure differential will collapse tubing and must be avoided
• Storage temperature range: -30 to 60°C (-22 to 140°F)

FC400 Materials of construction

• Housing / Shell – GE Noryl
• End caps – GE Noryl
• Seals – EPDM (peroxide cured)
• Tube bundle headers – Thermoset polyurethane
• Membrane tubing – Nafion™ polymer

IMPORTANT – WARNING! Due to differing rates of expansion, metal fittings are not recommended. ABS or Nylon fittings are required. Additionally, DO NOT USE teflon tape when attaching fittings to Perma Pure humidifiers. Using either metal fittings or teflon tape will cause the end caps to crack, leading to leaks (and voiding the warranty).

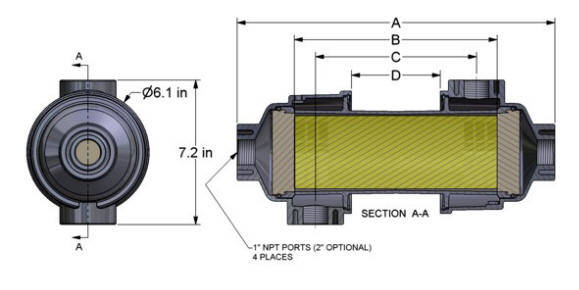

FC 400 Dimensions

Model Number	A	B Nom.	C	D	Flow Rate (slpm)
					Gas-to-Gas			Water-to-Gas
					Approach Temp.*			Flow vs Dewpoint
					4 deg	6 deg	9 deg
FC400-2500-7LP	12.82″	7″	5.0″	5.0″	105	435	580	N/A
FC400-2500-10LP	16.63″	10″	8.0″	4.4″	260	625	833
FC400-2500-15LP	21.63″	15″	13.0″	9.4″	390	938	1250	N/A

NOTE: FC-400 Series is available with optional 2″ ports
* The performance information for the gas-to-gas units are expressed as the flow rate of air (slpm) in relation to the approach dew point temperature. The approach temperature is defined as the difference between the cathode exhaust stream entering the humidifier and the humidifier exhaust stream going to the stack. For example, if the cathode exhaust dew point entering the humidifier is 67° and the humidifier generates a dew point of 61°, it would have been sized for a 6° approach temperature.
